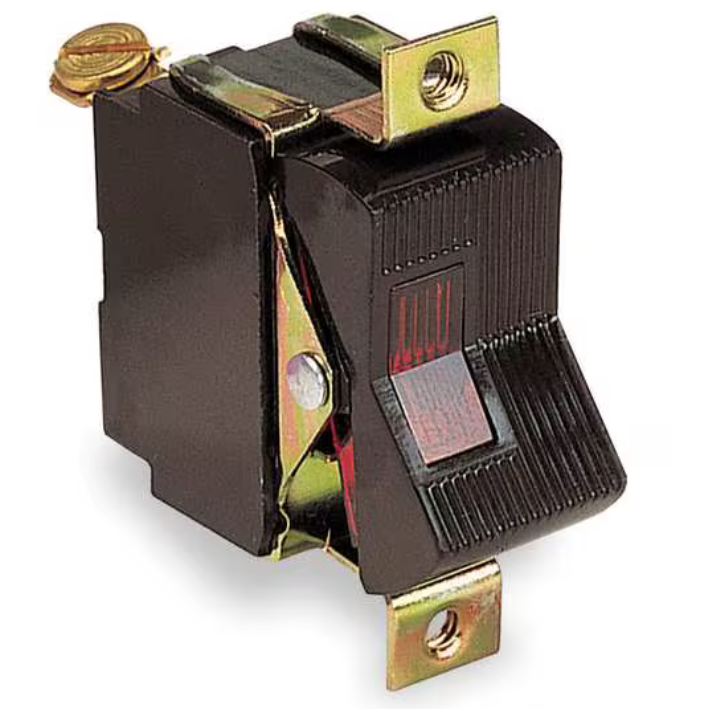

  • Illuminated Rocker Switch, ON/OFF, 3 Post

    https://www.woodmachineryparts.com/web/image/product.template/370/image_1920?unique=4476ea1
    (0 review)

    Illuminated Rocker Switch, Contact Form SPST, Number of Connections 3, Switch Function On/Off


    Availability: Available

    ​Factory direct order.


      This combination does not exist.

      Login  or  Register  to view your discount & purchase options

      Sku​:
      AF-26-05
      Brand:  WMP

      Have questions about this product?


      Manufacturer Part Number: 4X216
      Alt. Reference: 01445
      Lead Time: See details above.


      Illuminated Rocker Switch, Contact Form SPST, Number of Connections 3, Switch Function On/Off, Terminals Screw, Mounting Hole 0.625 in x 1.625 in, AC Contact Rating 10 A @ 250 V, 15 A @ 125 V, DC Contact Rating 15 A @ 15 to 28 V, HP 3/4 hp, Body Color Black, Switch Color Red, Standards CSA, UL Listed, IP Rating Not Applicable, Special Features 6-32 SCREW HOLES 1.62 in APART, Red Neon (On)


      Dimensions

      Mounting Hole Width 0.83 in
      Mounting Hole Length 1.45 in



      Contact Form SPST
      Number of Connections 3
      Switch Function ON/OFF
      Terminals Screw
      Mounting Hole 0.625 in x 1.625 in
      AC Contact Rating 10 A @ 250 V, 15 A @ 125 V
      DC Contact Rating 15 A @ 15 to 28 V
      HP 3/4 hp
      Body Color Black
      Switch Color Red
      Special Features 6-32 SCREW HOLES 1.62 in APART, Red Neon (On)
      Standards CSA, UL Listed
      Product Type Rocker Switch
      Series LTIL
      Lamp Module Type No Lamp Module Included
      NEMA Enclosure Rating No Enclosure
      Lens Color Red
      Lamp Type Neon
      Horsepower 1/2 hp @ 125 to 250 V
      Switch Function Configuration On/Off
      Operator Illumination Illuminated
      Operating Temperature - Maximum 185 Degrees F
      Terminal Connection Type Screw Terminals
      Includes Lamp Module No Lamp Module Included
      Number of Positions 2
      Includes Lens Lens Included
