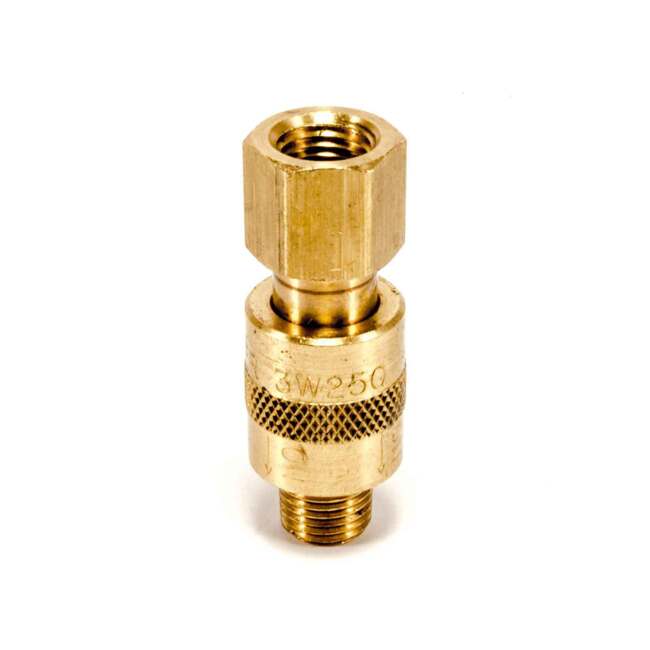

Slide Valve, Hand Slide Flow Control, 1/4" NPT Thread, Brass, Fost-Air 3W250

(0 review)

Unique Model(s): 280 & 285 Series*

JLT Model(s): 717 Series*

Ritter Model(s): Most Combo Tables*

Generic Model(s): XXX000*

Availability: Available

Factory direct order.

Ships in 1-3 days.

Fost-Air 3W250 hand slide air valve for ON/OFF exhaust operation on your equipment.

This combination does not exist.

Sku:

AF-26-05

Brand: Foster

Have questions about this product?

Manufacturer Part Number: 3W250
Alt. Part Number: 3W250, A86
Alt. Reference: 991063
Lead Time: See details above

Description

A dependable hand-operated slide valve designed for woodworking and industrial pneumatic applications.

Valve Details:

Provides low cost ON/OFF EXHAUST operation
Slide the sleeve to the ON position. Exhaust ports are closed, valve is open. Reversing the sleeve, opens exhaust ports, shuts off flow
Ports covered for protection against exhaust flow
Body detent secures sleeve position
Valve with lockout complies with OSHA Standard 29 CFR, Part 1910
Rated Pressure: to 200 PSIG
Temperature: –25° to +200°F

Slide valves are utilized to achieve quick isolation of the air line by discharging system air to the atmosphere. When the sleeve is maneuvered in one direction, it enables the passage of air through the slide valve into the system. Shifting the sleeve in the opposite direction ceases the supply and permits the downstream air to vent to the atmosphere.

*Customer feedback indicates compatibility with the following brands:

Unique Model(s): 280 & 285 Series

JLT Model(s): 717 Series

Ritter Model(s): Most Stile & Rail Combo Tables (Includes R250, R275, R300, R375, R450)

**User-provided data may indicate a potential match, but it is not guaranteed. Always check components against your machine documentation and visually inspect to ensure proper fitting. WMP makes no assumptions or guarantees of suitability for your application.
