3 Port Solenoid Valve for Castle TSM-21, 22 Pocket Cutter

3 Port Solenoid Valve for Castle TSM-21, 22 Pocket Cutter

(0 review)

Castle Model(s): TSM-21, TSM-22, TSM-31, TSM-35*

Castle Part #(s): P21224

Generic Model(s): XXX400*

Availability: Available

Factory direct order.

Ships within 1-3 days.

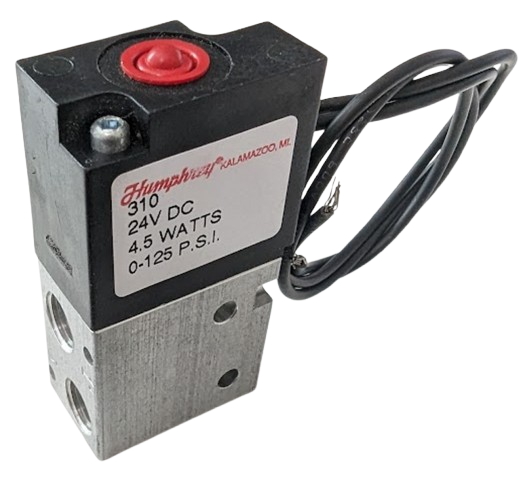

3-Port Humphrey Solenoid valve for Castle TSM-21 & TSM22 pocket hole cutters.

This combination does not exist.

Sku:

AF-26-05

Brand: Castle USA

Have questions about this product?

Manufacturer Part Number: P21224
Alt. Part Number: P21224, 31024VDC, 310-24
Alt. Reference: 310-12-VDC, 310-12, Humphrey
Lead Time: See details above

Description

This 3 port solenoid valve is specifically for the Castle TSM-21 and TSM-22 pocket hole cutter machines manufactured after serial number 61076.

The valve may also be used on TSM-30 series Pocket Hole Machines (for Clamp function ONLY). Built to withstand the rigors of everyday industrial use, it’s crucial to have one readily available for quick replacements for maintaining consistent production.

*Used in the TSM-21, TSM-22 after serial number 61076 for the Clamp, Route or Drill functions.

*Also used on TSM-31 and TSM-35 Pocket Hole Machines (for ONLY the Clamp function). Replaces the older Parker equivalent in vintage models.

Valve Details:

3-Way, 2-Position, Single Solenoid, Multi-Purpose, 1/8" NPT Ports, Aluminum Body, NBR Seals, 24VDC, 24" Electrical Leads Over Port 2, Non-Locking Manual Override, 0-125PSI Pressure Range

Castle USA part # P21224, 3-Port Humphrey Solenoid valve for TSM-22 (See above notes for TSM-21, and TSM-31 & TSM-35 applications.)
