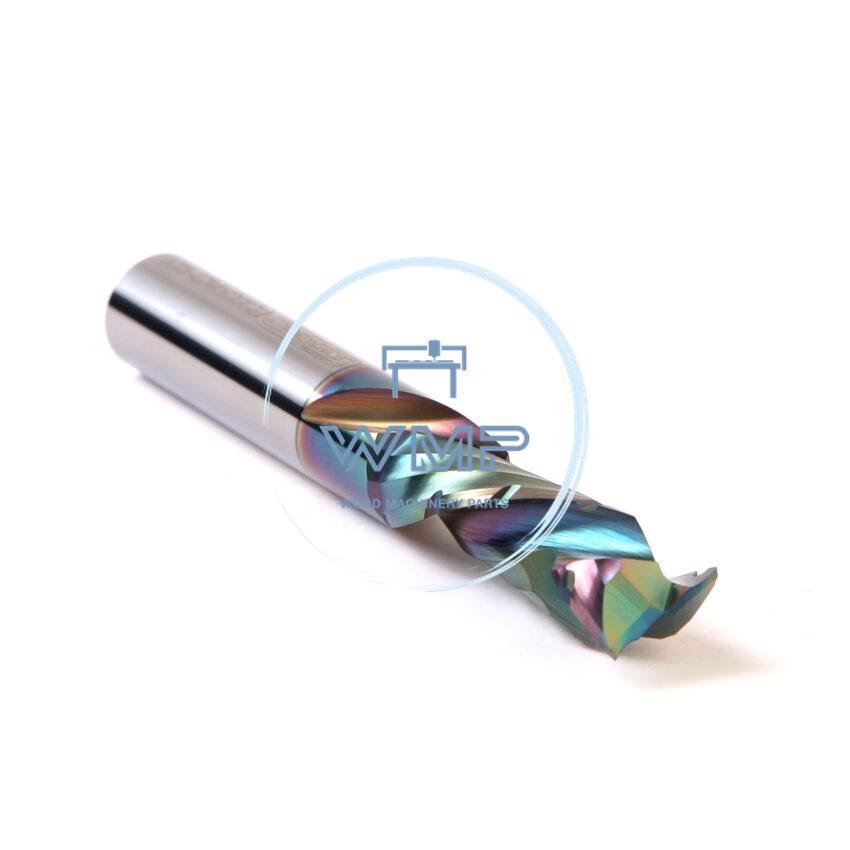

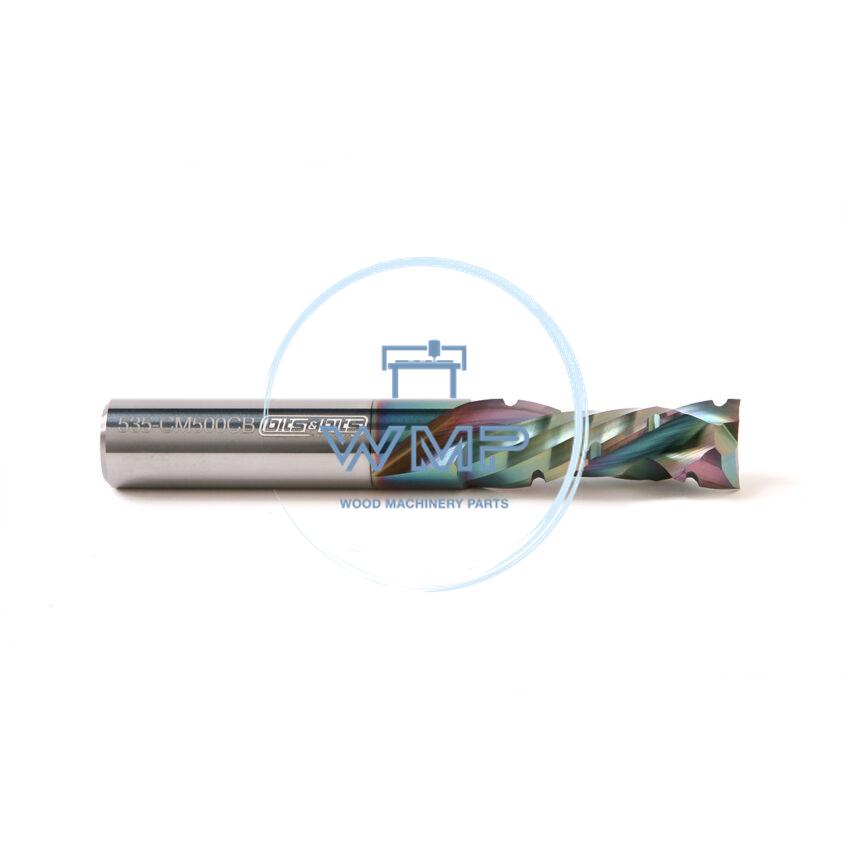

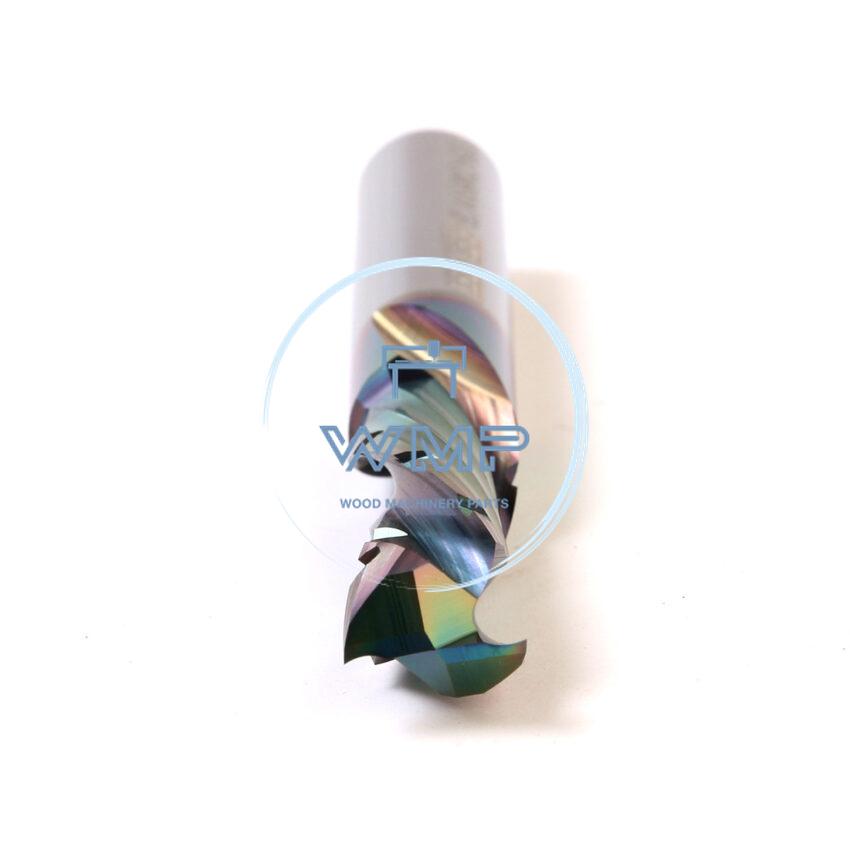

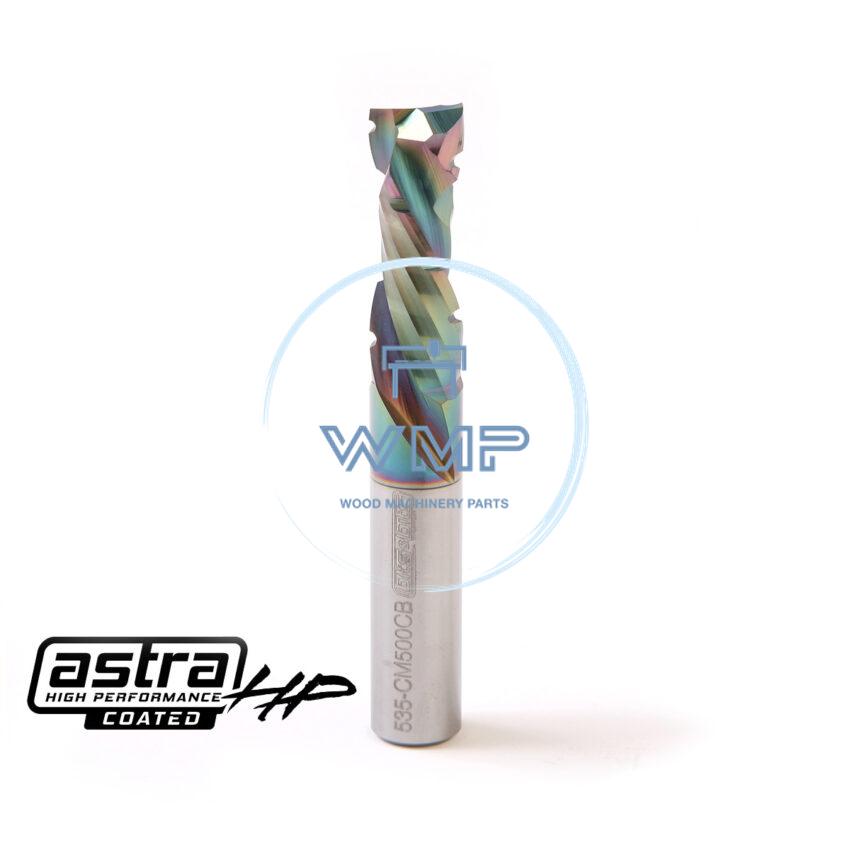

1/2" Chipbreaker Compression Router Bit, High Performance Astra Coating, .5" Cut Dia, 1.5" Cut Length, 3.5" OAL, .5" Shank Dia
Cut Diameter: .5"
Cut Length: 1.5"
Overall Length: 3.5"
Shank Diameter: .5"
*AstraHP Coated* (Learn about Astra Coating)
Availability: In Stock
Same day shipping.
Manufacturer Part Number:
535-CM500CB
Alt. Part Number:
535-CM500CB
Lead Time:
See details above
1/2" HP Compression Chip Breaker
Designed for applications requiring high feed rate compression cuts. Works well for double-sided melamine or laminated materials.
This High Performance .5" spiral compression chipbreaker router bit features a 1.5" cut length and a 3.5" overall length (OAL). Constructed from solid carbide and AstraHP Nano-Coated for durability and long life, this bit is designed for large cnc machines, router tables, and hand routers.
- AstraHP Coated
- Solid Carbide
- Cut Diameter: 1/2″
- Length of cut: 1-1/2″
- Spiral Change: 0.375″
- Overall Length: 3-1/2″
- Made in USA
How Chipbreaker Bits Work:
Chipbreaker bits are designed with distinctive notch profiles that create a serrated cutting edge, effectively breaking chips into smaller, more manageable fragments during machining. This innovative geometry enhances efficiency by reducing machine downtime associated with clearing large chips, prolonging bit life by decreasing the cutting force exerted on the bit, and enabling higher speeds and feeds.
As a chipbreaker bit turns and its cutting edge engages the workpiece, it shears off material, generating chips. When the cutting action is interrupted, as occurs with the chipbreaker notches, the chips are reduced in size, making them easier to remove. The offset design of the chipbreaker notches, flute-to-flute, ensures a smooth, flat surface finish as each flute effectively removes any residual material left by the preceding flutes.
CNC, Router, and Router Table suitable.
Speed and feed rates:
See speed & feed data tab.
Made in the USA by Bits & Bits.
