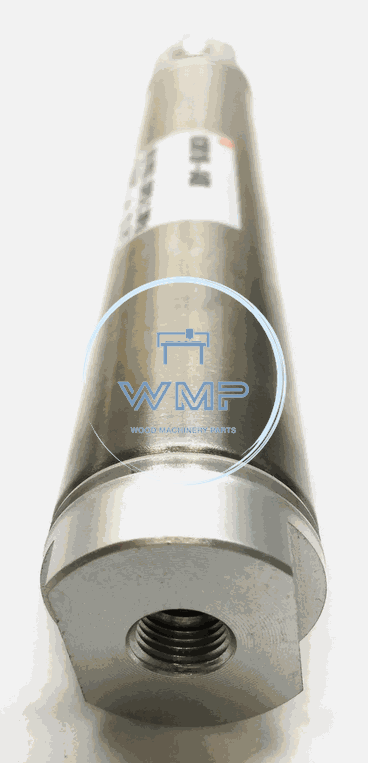

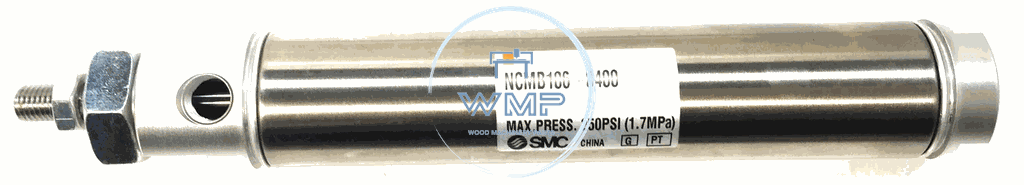

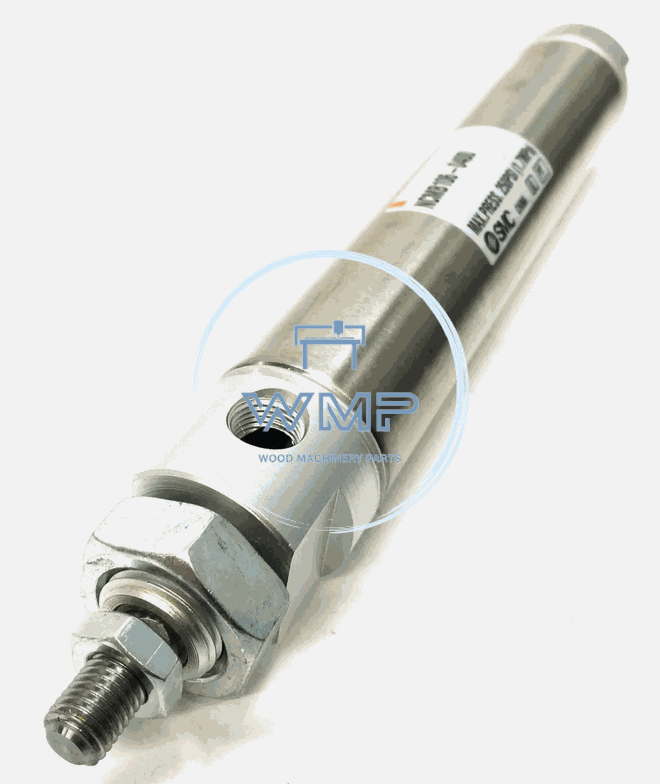

Cilindro neumático SMC, serie NCM, diámetro interior de 1,0625", carrera de 4", NCMB106-0400
NCMB106-0400 Air Cylinder for woodworking machinery.
Bore Diameter: 1.0625 in
Cylinder Stroke: 4 in
Overall Length: 10.62 in
Availability: Available
Factory direct order.
Ships in 1-3 days.
Manufacturer Part Number:
NCMB106-0400
Alt. Part Number:
106-0400, B106-0400
Alt. Reference:
NCMB106-0400, SMC, B1060400, 06033
Lead Time:
See details above
Double Acting 5/16-24 thread, 5/8-18 Nose Mount, Rear Pivot, No Cushion
Specifications:
Bore Diameter: 1.0625 in
Stroke: 4"
Overall Length: 10.62 in , Overall Width 1.12 in
Cushion Type: None
Cylinder Size: Standard
Operating Pressure Range: 8 psi to 250 psi, Operating Temperature Range: 40 °F to 140 °F
Piston Action: Double-Acting
Port Gender: Female
Port Thread: Standard NPT
Pull Force At 100 Psi: 81.1 lbf
Push Force At 100 Psi: 88.7 lbf
Rod Gender: Male
Rod Size / Thread: 5/16-24 Male UNF
Rod Thread: Standard UNF
Rod Type: Single Rod
(Valves/fittings are not included)
Customer verified applications:
2000's Morbidelli PTP Machines
2000's SCMI PTP Machines
1980's EZY-FORM 100P Post Former
1980's-90's 0100 EZY-FORM
